Cylindrical Lithium battery pack

  • 18650 Low Tempt 4S3P 14.6V 6.6Ah Rechargeable battery pack
  • 18650 Low Tempt 4S3P 14.6V 6.6Ah Rechargeable battery pack
  • 18650 Low Tempt 4S3P 14.6V 6.6Ah Rechargeable battery pack
  • 18650 Low Tempt 4S3P 14.6V 6.6Ah Rechargeable battery pack
  • 18650 Low Tempt 4S3P 14.6V 6.6Ah Rechargeable battery pack
  • 18650 Low Tempt 4S3P 14.6V 6.6Ah Rechargeable battery pack
18650 Low Tempt 4S3P 14.6V 6.6Ah Rechargeable battery pack 18650 Low Tempt 4S3P 14.6V 6.6Ah Rechargeable battery pack 18650 Low Tempt 4S3P 14.6V 6.6Ah Rechargeable battery pack 18650 Low Tempt 4S3P 14.6V 6.6Ah Rechargeable battery pack 18650 Low Tempt 4S3P 14.6V 6.6Ah Rechargeable battery pack 18650 Low Tempt 4S3P 14.6V 6.6Ah Rechargeable battery pack

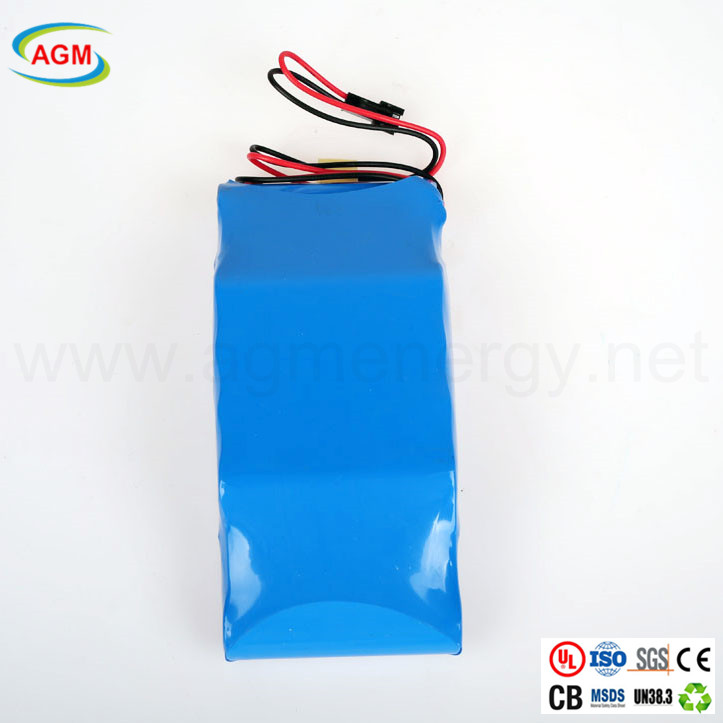

18650 Low Tempt 4S3P 14.6V 6.6Ah Rechargeable battery pack

  • Model:AGM- 14.6V 6.6Ah
  • Normal Voltage:14.6V
  • Normal Capacity:6.6Ah
  • Cell:Low Temperature Battery ICR18650CL 2200mAh 3.7V
  • Product description: 18650 Low Tempt 4S3P 14.6V 6.6Ah Rechargeable battery pack is from Angle which is a Professional Li-ion batteries,Ni-MH batteries,Battery Packs manufacturer and exporter in china!
  • INQUIRY

18650 Low Tempt 4S3P 14.6V 6.6Ah Rechargeable battery pack


1.Description:

Rechargeable battery pack widely used in consumer electronics and industrial products such as notebook computers, power bank, digital cameras, movable  lighting, communications equipment, electric bicycles, power tools and so on. Single cell capacity from 500 to 2600mAh, high safety performance, Memory, consistency, environmental protection economy, can be customized according to customer requirements and OEM / ODM solutions.


2.Spe.(Ref.)
1)1)Normal Capacity:
6.6Ah
2)Min.Capacity:
6.6Ah
3)Normal Voltage:
14.6V
4)End ofdischargeVoltage:
12.0V
5)Maximum Continuous Discharge Current:
0.5C
6)Internal Resistance:
≤180mΩ
7)Standard charge:
0.5C
8)Operation Temperature Range(Charge):
0-45ºC
9)Operation Temperature Range(Discharge):
-40~60ºC
10)Dimensions:
146.7*66.8*37.2mm
11)N.W:
about 0.55KG


3.Low Temp battery cells and battery pack Ref.:


4.Hot battery cells models and major parameters:


5.Major Features:

1)Small Volume.
2)HighCapacity,singlecell from 500-2600mAh.
3)Rechargeable.
4)Environmental Protection economy.
5)Techniquecan be customized.
6)High energy density.
7)Fastest Charger
8)Reliable and safety performance.
9)Cycle life over 1000times  ..


6.Hot Applications:

1)Wind Energy
2)Notebook Computer
3)E-tools
4)Digital Camera
5)Solar Energy Streetlight
6)Model Aircraft
7)E-Bike
8)Communication Equipment
9)Power Bank
10)UAV
11)Thermal Cloth
12)Movable Lighting
13)Field Mower
14)Automatic Sweeper
15)E-Scooter
...


7.Major tests ensure high quality:

1)Initial Performance Test
A.Open-Circuit Voltage
B.Internal Impedance
C:Min.Rated Capacity
2)Cycle Life
3)Leakage-Proof Test
4)Vibration Test
5)Drop Test
6)Crush Test
7)Short CircuitTest:BothºC20  and 60ºC
8)Impact Test
9)Forced Discharge Test
10)Nail Pricking Test
...


8.Packing photos:(Ref.)

More details pls feel free to contact us,thank you!
